The acquisition of advanced Simultaneous Localization and Mapping (SLAM) technologies has drastically transformed 3D Laser Scanning services. It has altered the way AEC professionals process complex environments.
In the context of Scan to BIM services, SLAM technology is used for real-time 3D mapping, particularly in environments where it is difficult to set up fixed scanners or where the building geometry is complex. It captures real-world data and transforms that data into usable digital models.
SLAM technology plays a pivotal role in delivering high-quality 3D laser scanning services and point cloud to BIM conversions. In this article, we will discuss the SLAM technologies and the most effective method of using them for 3D scanning.
Understanding SLAM Technology
SLAM technology is a set of techniques used in robotics and other fields to create a map of an unknown environment while simultaneously keeping track of the device's location within that map.
SLAM serves profoundly in scenarios where GPS doesn't work well, such as complex indoor spaces or more dynamic environments.
The 3D laser scanning services benefit greatly from this technology as the mobile systems can capture detailed spatial information even with complicated geometries.
However, unlike static laser scanning systems, SLAM-based devices can capture data continuously in real time, implying more fluent and efficient workflows.
Therefore, there is a high value for the applications with large-scale projects, including infrastructure surveys, urban mapping, and models of a construction site.
SLAM Enabled 3D Laser Scanning Services: The Workflow
The general approach of a SLAM-enabled process of 3D laser scanning begins with the mobile scanner such as a handheld or drone-mounted unit, equipped with sensors making distance and angle measurements.
Data points are collected in the process and a "point cloud" is built from it, which is digital information surmounting the area scanned.
The SLAM algorithm constantly refines the scanner position, updating the point cloud data to ensure the outcome doesn't deviate from actual measures.
The technique reduces time and effort compared to fixed-position scanning, considerably. Collected data can be converted into 3D BIM models or CAD drawings for various applications in design and construction projects.
Benefits of SLAM Technology Infused Scan to BIM Services
Enhanced with SLAM technology, 3D laser scanning services capture a detailed dynamic environment. Since the data that SLAM-enabled scanners collect is in real-time and in constant motion, it is very effective for projects such as infrastructure mapping, construction, and urban planning on a large scale.
While point clouds captured by traditional, fixed-position scanners are obtained rather slowly and not very precisely, especially in complex or inaccessible regions, this same process can be executed rapidly with SLAM technology.
This flexibility decreases the time and cost of data collection, yet it provides very accurate, high-resolution models.
SLAM-powered 3D laser scanning services are ideal for applications requiring quick turnarounds, which can be the case in as-built documentation or site analysis.
SLAM technology has made various advancements providing ample benefits to the AEC industry as follows:
Flexibility in Movement
Freedom of Movement with SLAM-powered 3D scanners allows the clientele to move freely in environments that do not require fixed points of reference, as was the old approach of traditional laser scanners.
This flexibility therefore accelerates the process-especially when dealing with extensive or intricate environments.
Real-time Data Processing
The feature of computing the point cloud data in real-time enables the user to maintain data accuracy as the scanner moves through the space.
This is especially useful for projects demanding quicker turnaround and have intricate geometries, such as renovation work or as-built documentation.
Increased Efficiency
SLAM-powered 3D laser scanning services can cover more areas in a much shorter time, which perfectly suits huge construction sites, road construction projects, and historical landmarks, where massive areas require spatial mapping.
Types of SLAM Technologies
SLAM technology has impacted data acquisition in industries regarding architecture, engineering, and construction affairs.
There are different types of SLAM technologies, each suited to different scanning requirements and environments.

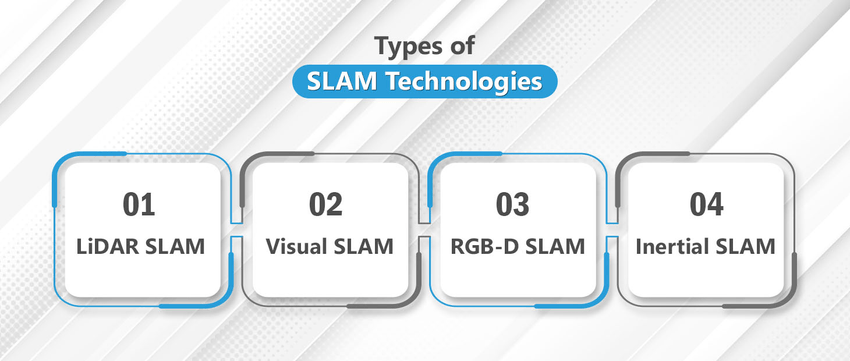

Below are the four main types of SLAM technologies which you would most probably meet: LiDAR SLAM, Visual SLAM, RGB-D SLAM, and Inertial SLAM.
LiDAR SLAM
- LiDAR SLAM is a method that uses laser sensors, emitting light pulses, which bounce back from objects in the environment.
- It creates a very detailed 3D map of the environment by recording time-of-flight measurements generated by a sequence that the SLAM algorithm uses to localize the position of the scanner.
Visual SLAM
- Unlike LiDAR SLAM, Visual SLAM uses laser pulses, it recognizes key points in the images it captures, and utilizes those key points for creating maps and movement tracking.
- Visual SLAM is lightweight so it can be implemented and installed easily in small-size devices such as drones or mobile robots.
RGB-D SLAM
- RGB-D SLAM incorporates not only color (RGB) but also depth (D) data coming from sensors such as Kinect or Intel RealSense cameras.
- This allows it to create 3D maps while identifying the shapes and distances of objects. RGB-D SLAM benefits from both the visual detail of cameras and depth information provided by infrared or structured light sensors.
Inertial SLAM
- Inertial SLAM technology combines the collected data with other sensor types, like cameras or LiDAR, to enhance accuracy.
- IMUs measure the acceleration and rotation of the scanning device, helping in estimating movement even when some external sensors fail, for example, in underground or in GPS-denied areas.
Conclusion
The combination of SLAM technologies and advanced scanning tools has dramatically enhanced the efficiency and accuracy of Scan-to-BIM conversion processes.
SLAM technology will completely revolutionize 3D laser scanning services in faster, more accurate, and cost-effective ways which was previously inconceivable in the AEC industry. SLAM technology is an evolving approach poised to revolutionize the capture and usage of spatial data.
